Transport analysis

Transport analytics on GISCARTA. New widget for building routes and service areas.

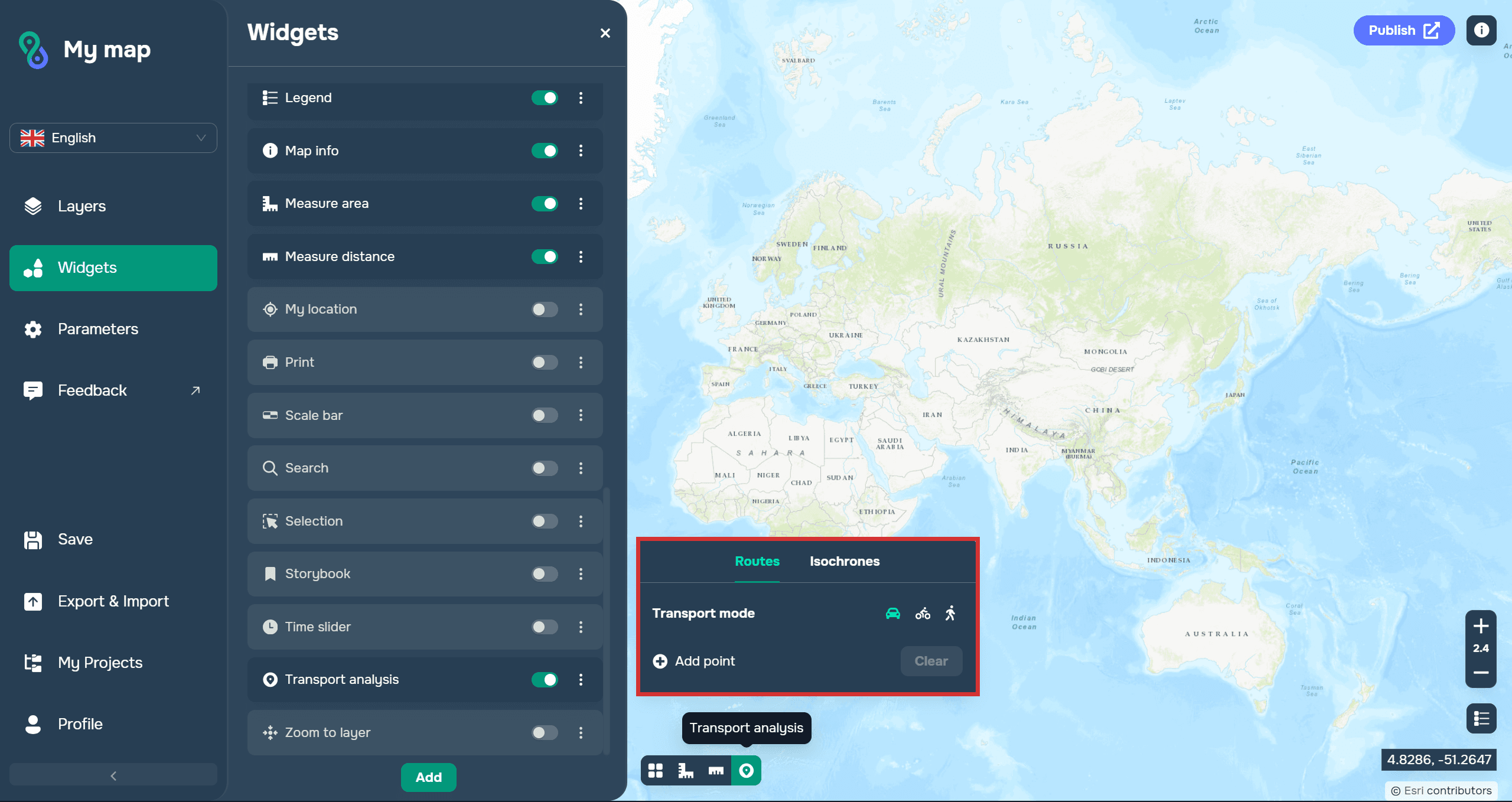

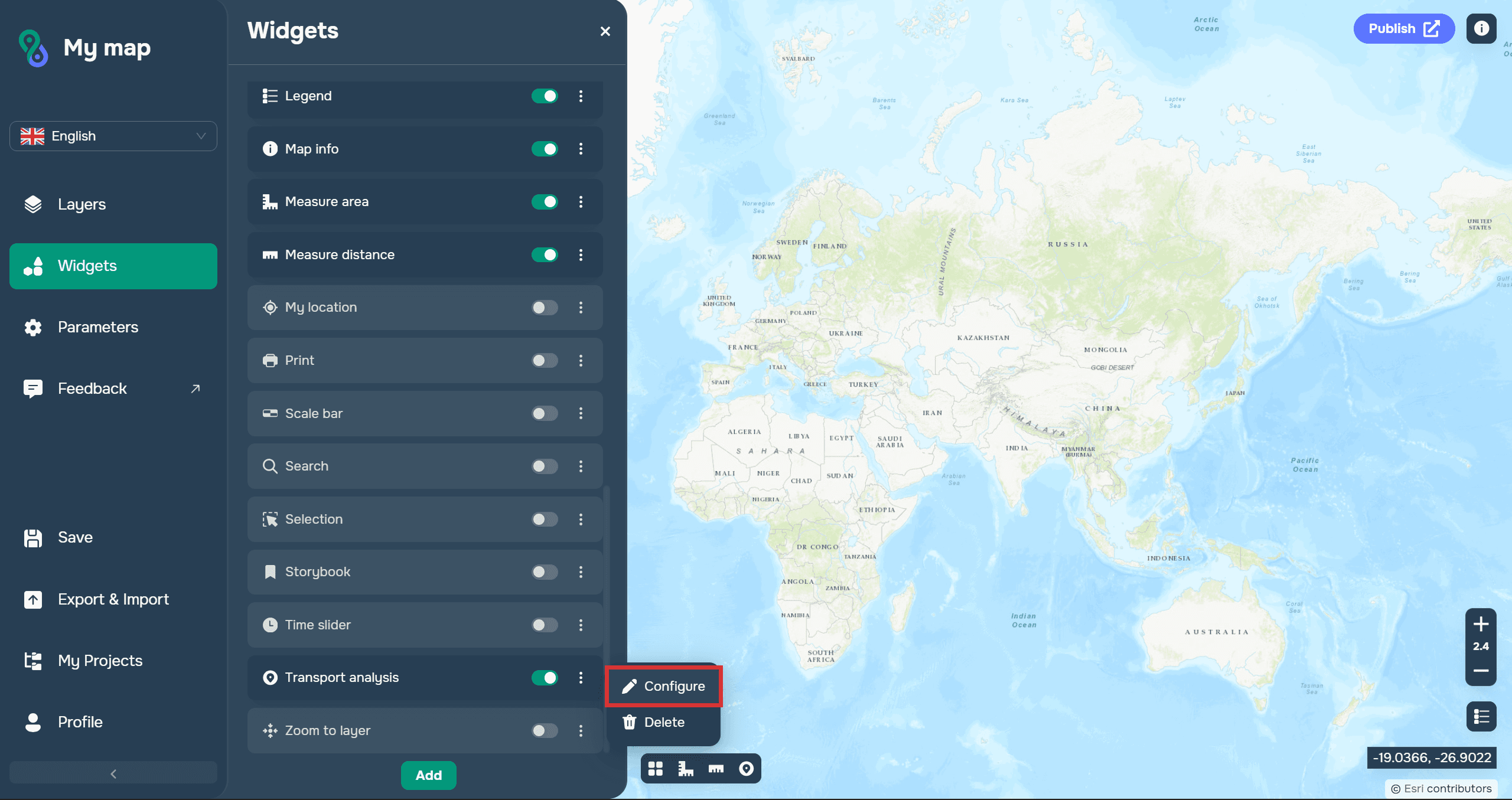

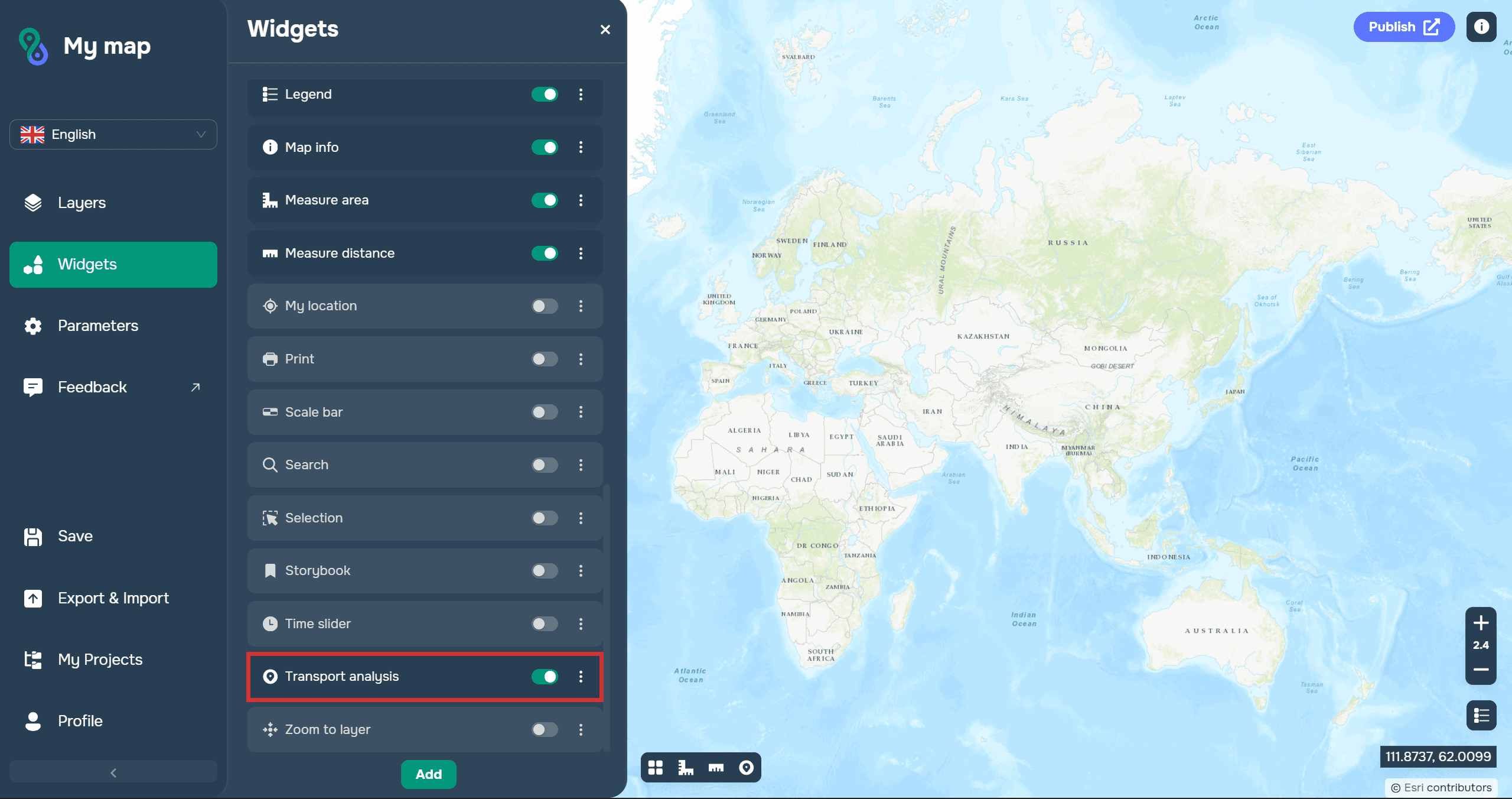

To turn on the widget, click on the corresponding icon on the map. After opening the widget, a dialog box appears on the map with the option of building routes or service are. In order to build routes, you need to place at least 2 points on the map.

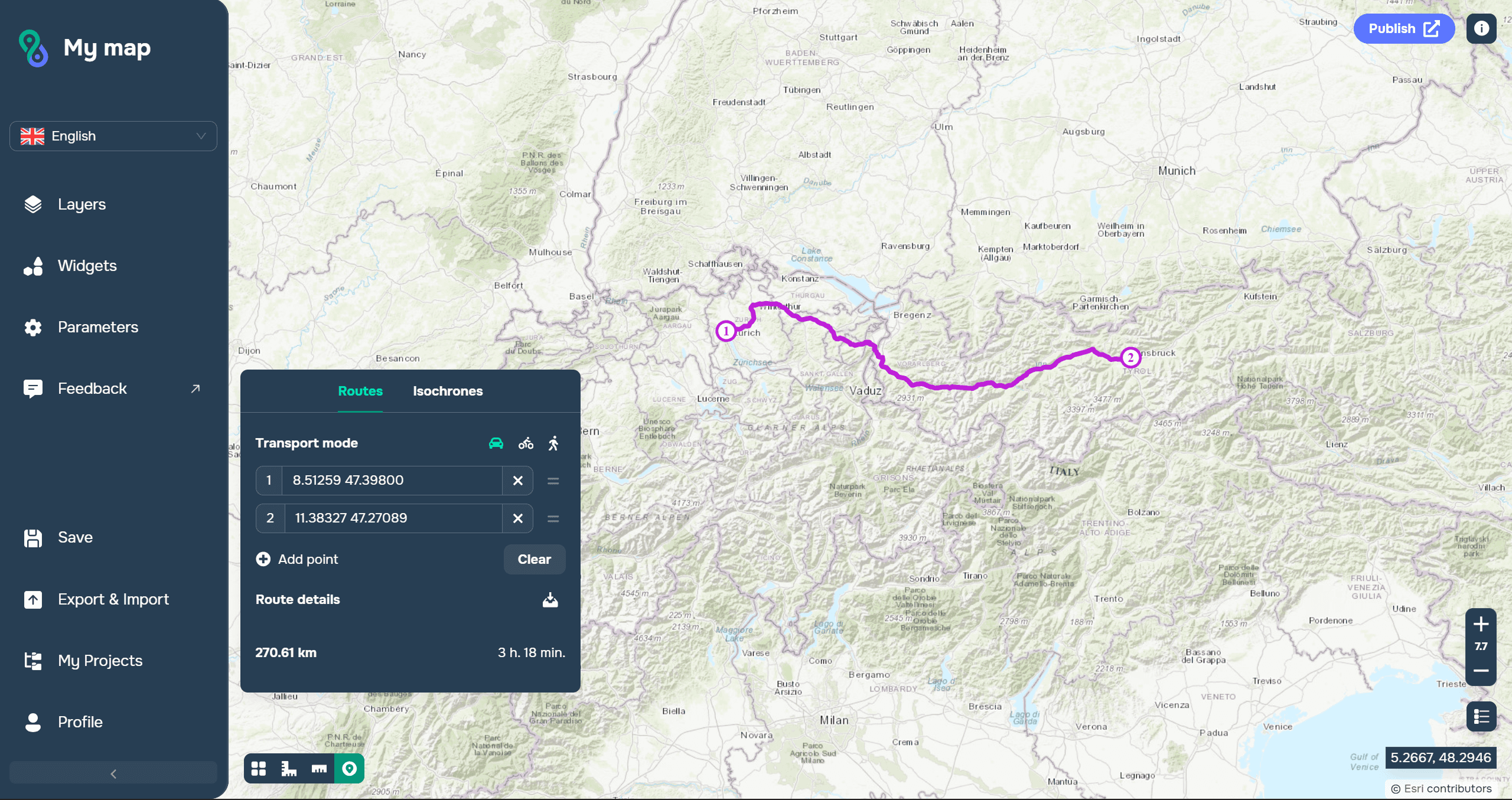

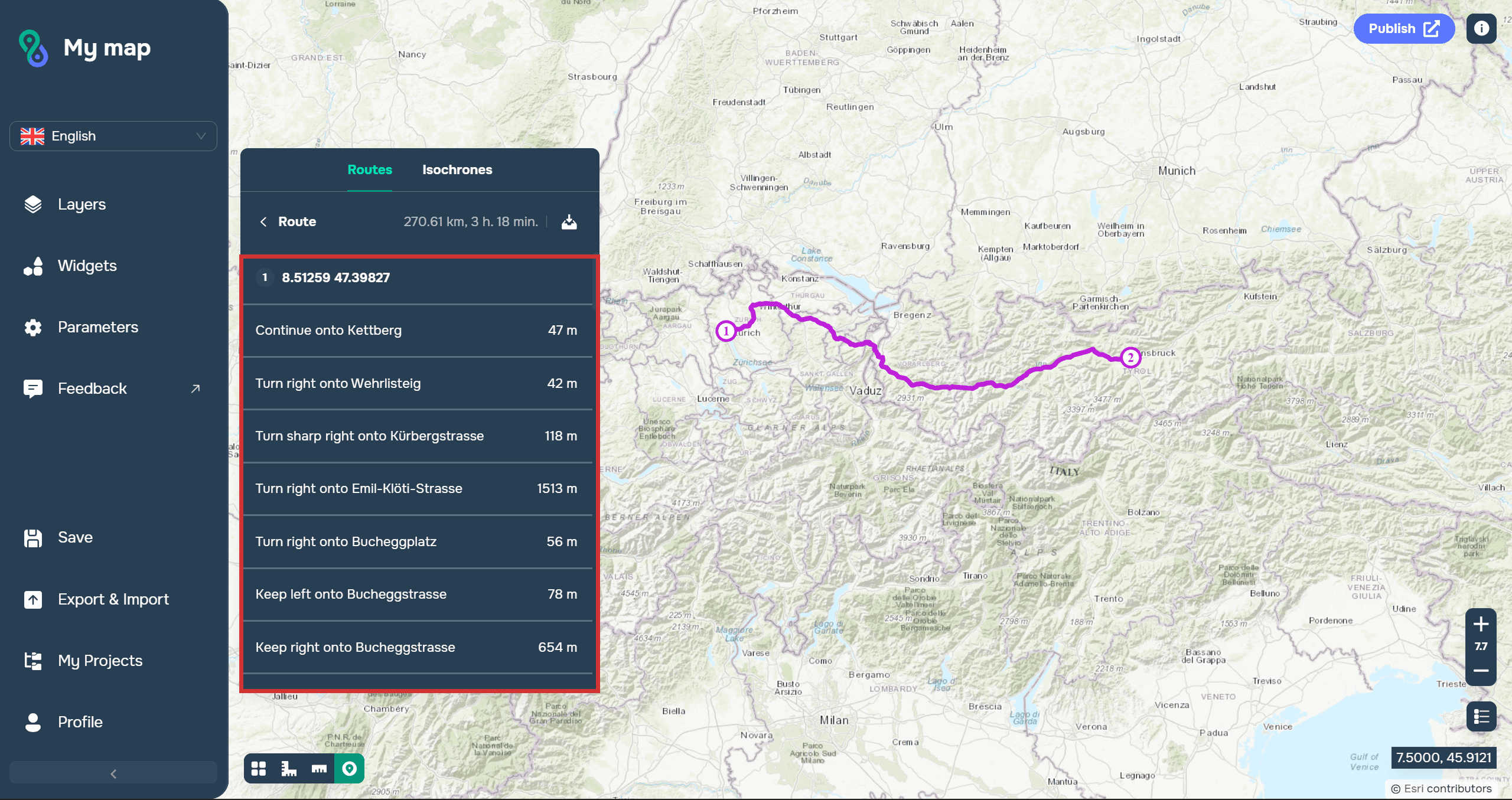

After placing 2 or more route points on the map, the user can select the mode of transportation (car, bicycle, on foot) for the route. The user can also move the order of the route points or view the details of the route by clicking on the generated route.

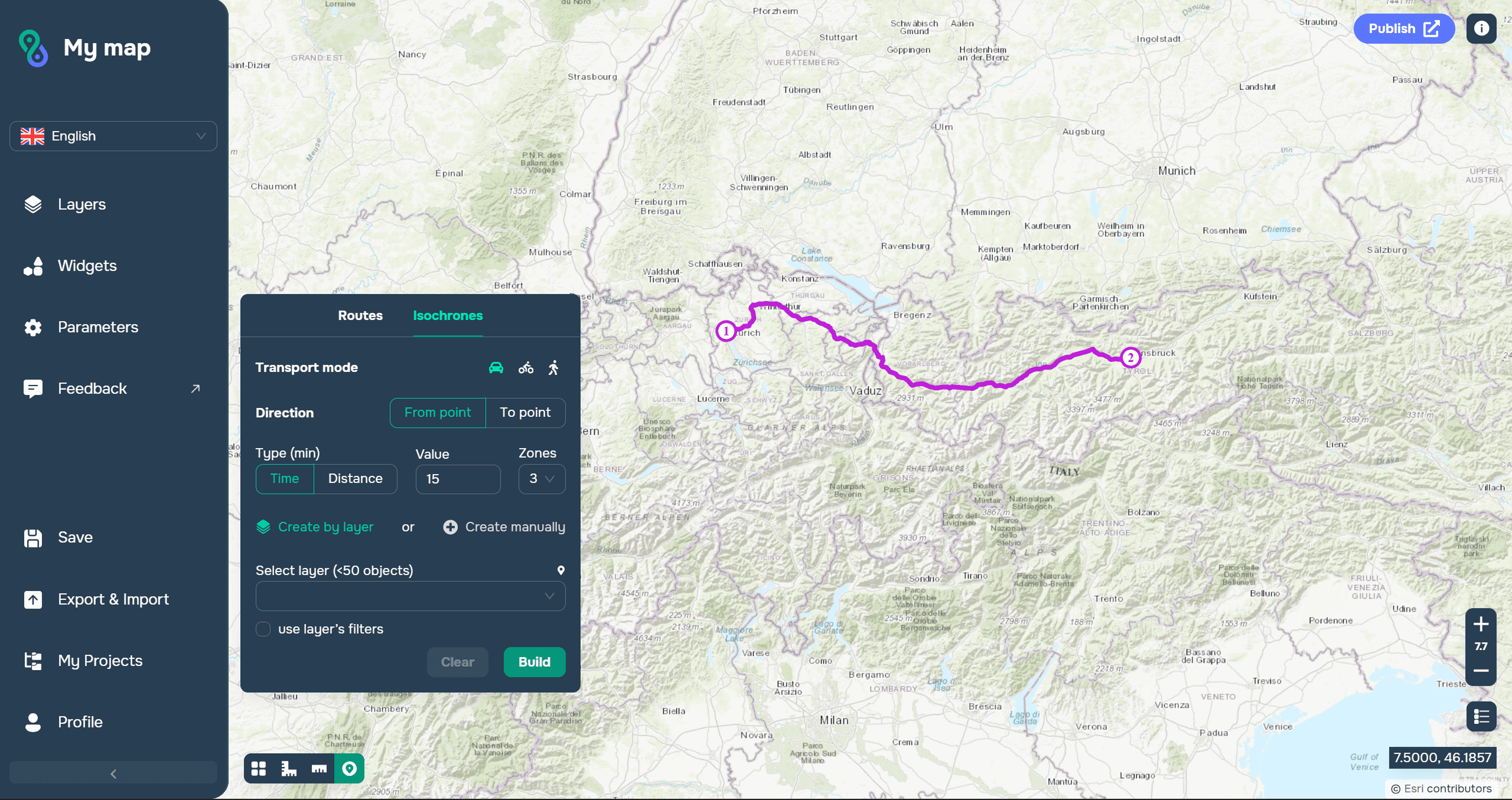

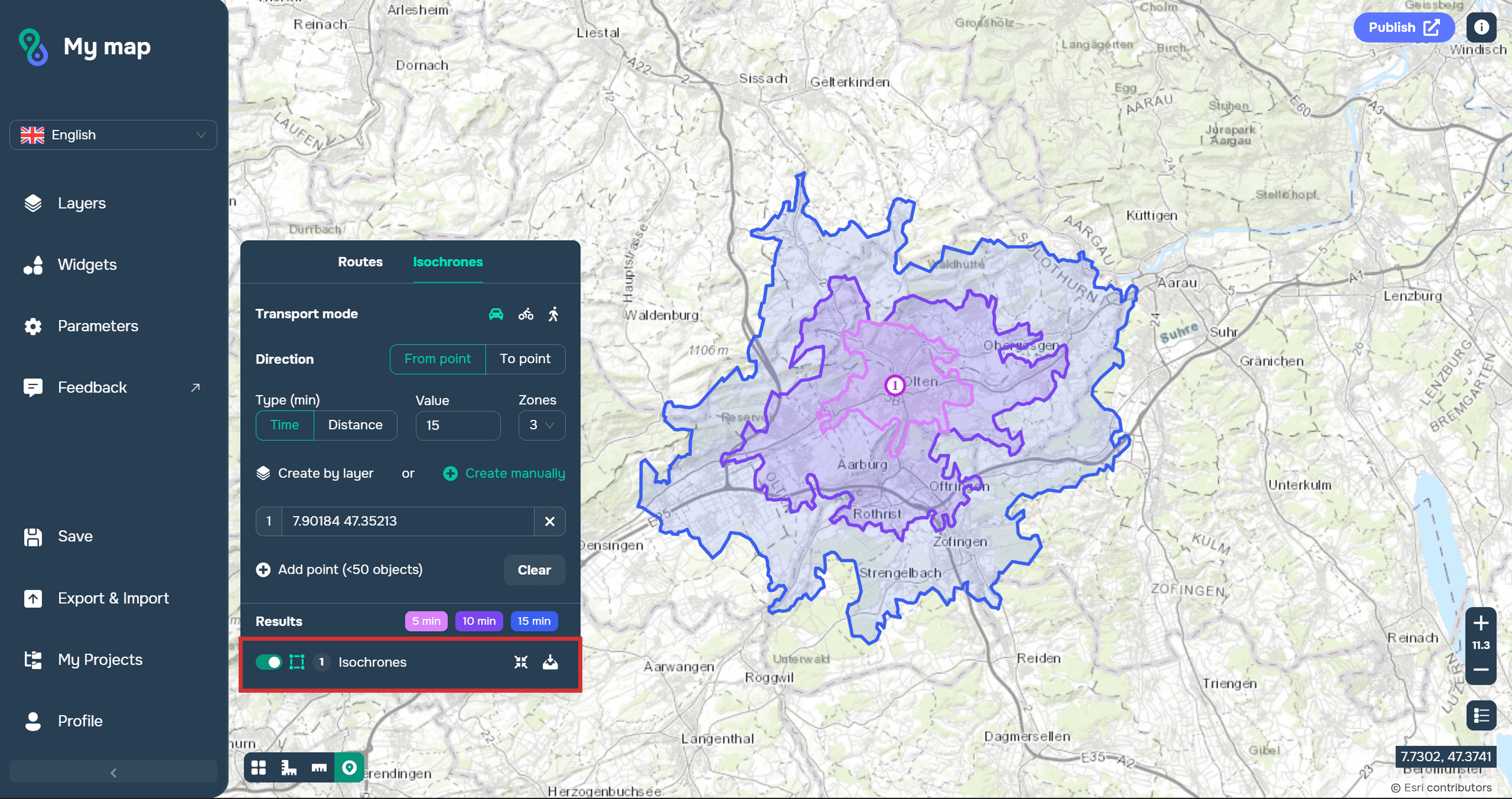

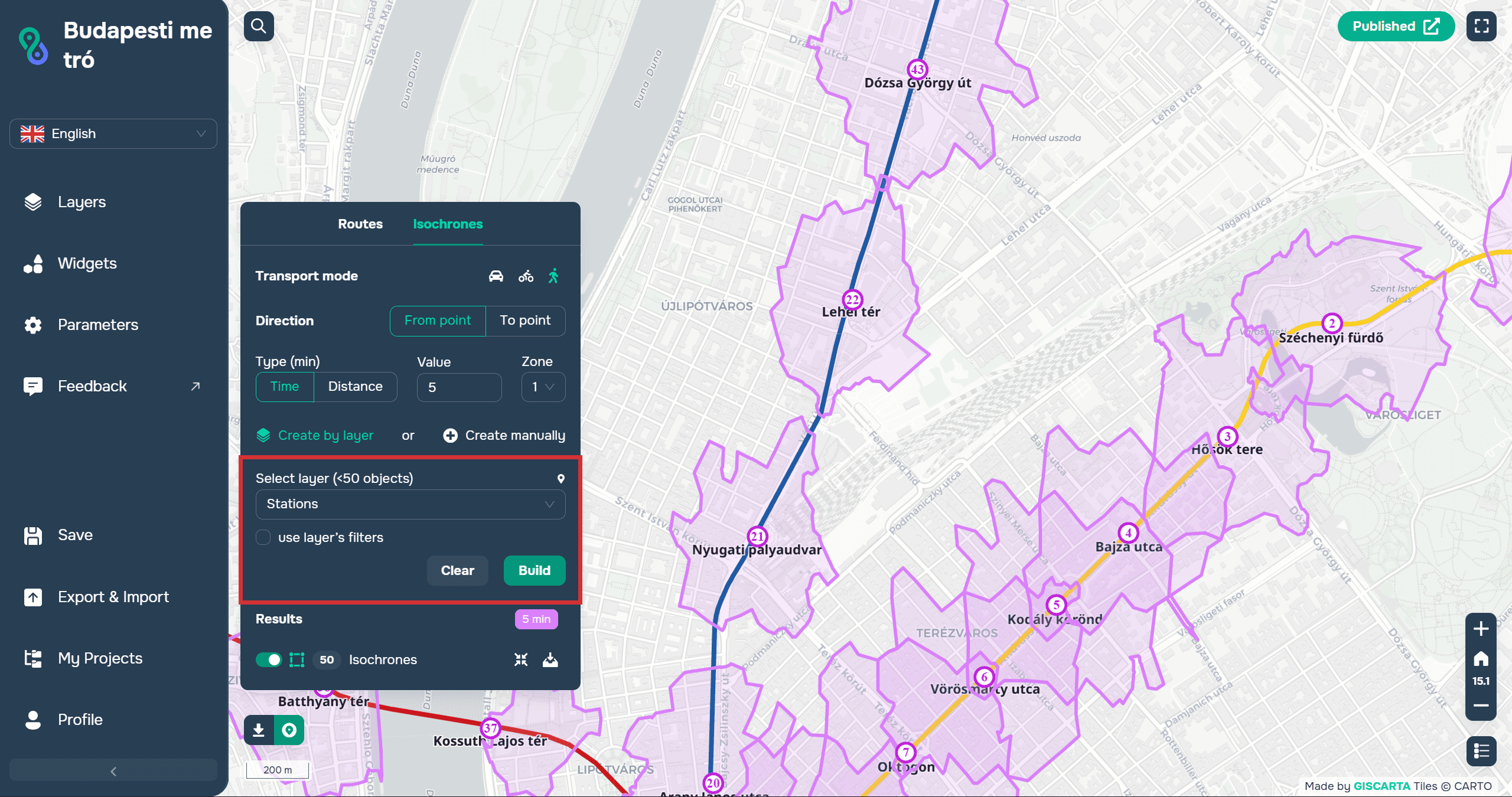

In order to build service areas, the user can go to the corresponding section and put 1 or more points on the map. Once a point is placed on the map, the user can change:

• The mode of transportation (car, bicycle, on foot)

• The type of accessibility (movement From or To a point)

• The type of unit (time (minutes) or distance (kilometers)

• The isochrone boundary value (in minutes or kilometers)

• The number of isochrones (1, 2 or 3)

Transport analytics can be used for such areas as:

• Urban planning

• Transport Analysis

• Construction

• Agriculture

• Mining

• Geology

• Hydrology

• Student studies

• Environmental studies

GISCARTA Team
